Introduction to Ring groove sealing surface flange and flange structure principle

Ring groove sealing surface flangeflanges, gaskets and bolts are interconnected as a group to form a detachable connection of combined sealing structure.，it is widely used in medicine, Architectural and mechanical engineering, device attachment, petrify, medicine and other industries，is carefully developed by Jianing forging combined with advanced technology。

1、Brief introduction of Ring groove sealing surface flange

Ring groove sealing surface flangeflange used on the inlet and outlet of equipment, used for the connection between two equipment.，be loved by our customers.。

Ring groove sealing surface flange

2、Ring groove sealing surface flange characteristics

Ring groove sealing surface flangeit has the characteristics of High reliability, corrosion-resistant, Long service life, High reliability and corrosion-resistant，used for connection between pipe ends.，it has been widely used in Pipe connection, device attachment, Architectural and mechanical engineering, medicine, Shipbuilding industry and other industries。

Ring groove sealing surface flange

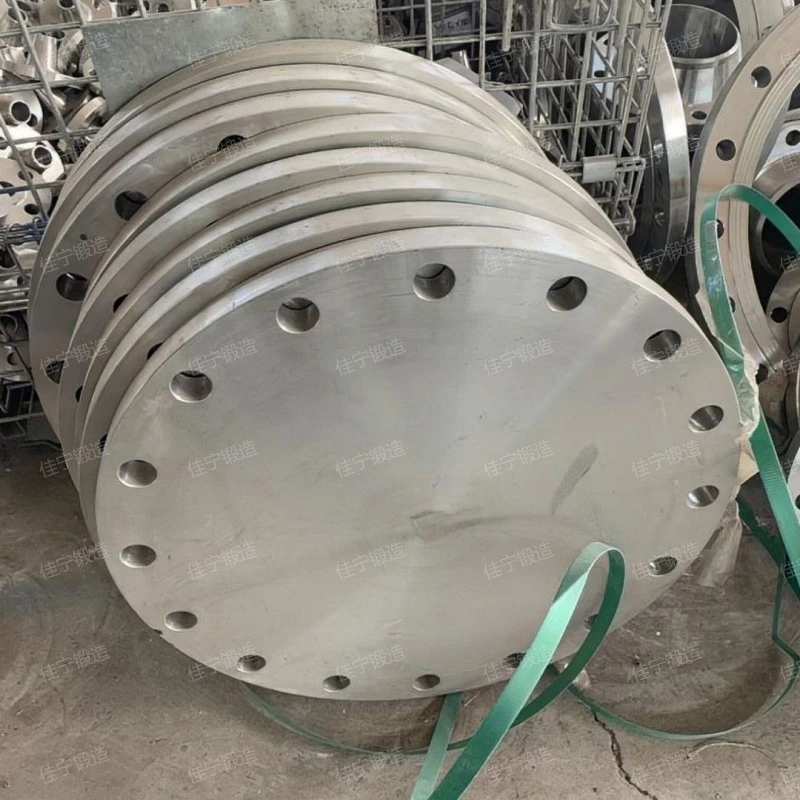

3、Ring groove sealing surface flange real shot picture

High-definition pictures of reliable Ring groove sealing surface flange at a glance。

Ring groove sealing surface flange

Note: All the pictures in this article were taken by Jianing forging manufacturer.。

4、Introduction of advantages of Ring groove sealing surface flange

Ring groove sealing surface flanges have the following advantages.

1. Good sealing performance

The Ring groove sealing surface flange adopts the principle of surface sealing, and the uneven parts on the sealing surface are filled with gaskets to realize effective sealing, prevent fluid leakage and ensure safe and stable operation in the production process.

2. Easy maintenance

The Ring groove sealing surface flange is easy to disassemble, suitable for equipment and pipelines that need to be cleaned, overhauled or replaced frequently, which is convenient for maintenance personnel to maintain and reduces downtime and maintenance cost.

3. Generality

The Ring groove sealing surface flange adopts standardized design, conforms to the standards and specifications of many countries and regions, and can be used in conjunction with various brands of equipment and pipelines, thus improving the interchangeability and versatility of equipment.

4. economy

The manufacturing cost of the Ring groove sealing surface flange is relatively low, and it is simple to assemble by fixing methods such as screws or nuts, which improves the production efficiency and reduces the production cost.

5. Strong bearing capacity

The structural design of the Ring groove sealing surface flange makes it have strong bearing capacity and can adapt to the needs of high-pressure working environment. Excellent performance in pipeline connection of high temperature, high pressure and corrosive media, ensuring long-term stable operation of pipeline system.

Ring groove sealing surface flange

5、Ring groove sealing surface flange application

Ring groove sealing surface flanges have the following purposes.

1. seal

Through the principle of surface sealing, it is ensured that the joint will not leak air, water or oil, thus ensuring the safe and reliable operation of the fluid conveying system.

2. Pipe connection

Used for conveying various liquids, gases and solid fluids, such as [commodity industry] and other fields.

3. support

As a supporting part of pipeline or equipment, it can improve the stability of pipeline or equipment and reduce problems such as vibration and deformation caused by stress.

4. connect

Ring groove sealing surface flange can closely connect different pipelines, valves, pumps and containers to form a complete fluid conveying system.

5. device attachment

Connect all kinds of equipment and machinery, such as engines, pumps, compressors, heat exchangers, air conditioning equipment, etc.

Ring groove sealing surface flange

Ring groove sealing surface flangeit is widely used inArchitectural and mechanical engineering,Shipbuilding industry,device attachment,Air conditioning and refrigeration,food processing and other industries，the advantage is The manufacturing cost is relatively low, and the assembly is simple through fixing methods such as screws or nuts, so that the production efficiency is improved and the production cost is reduced.、The design of the connection takes into account the factors such as disassembly, cleaning, overhaul and replacement, and has good operability, which reduces the difficulty and cost of installation.、Based on the principle of surface sealing, the uneven parts on the sealing surface are filled with gaskets to realize effective sealing, prevent fluid leakage and ensure safe and stable operation in the production process.、The two flanges are tightly connected by bolts and other fasteners to form a firm mechanical connection, thus ensuring the stable connection between the pipeline and the equipment.、The materials are varied, including carbon steel, stainless steel, alloy steel, etc. The appropriate materials can be selected according to the nature of the medium and working conditions to ensure the stability and corrosion resistance of the flange in different environments.。
