Introduction to Chemical pipe plate and tube sheet structure principle

Chemical pipe plateIt is a kind of fitting with specific holes drilled on circular steel plate, which are slightly larger than the outer diameter of the pipe to be penetrated.，It has a wide range of uses, including Improve heat transfer efficiency, Easy to maintain and repair., Adaptability and corrosion resistance, Support and fixation and Easy to maintain and repair.。

1、Brief introduction of Chemical pipe plate

Chemical pipe plateA hole slightly larger than the outer diameter of the pipe is drilled on the circular steel plate for fixing the pipe and the round steel fittings for sealing the medium. It is usually installed in a heat exchanger, and the pipe is penetrated and welded and fixed, thus playing the role of support and sealing. [Product Name] The machining accuracy, especially the distance between holes, the tolerance of pipe diameter, verticality and smoothness, has an important influence on the assembly and performance of chemical equipment.。

Chemical pipe plate

2、Chemical pipe plate use

The purpose of Chemical pipe plate is introduced as follows:

1. pressure vessel

In the pressure vessel, the Chemical pipe plate is used to seal and fix the tubes to prevent medium leakage and ensure the safe operation of the vessel.

2. steam turbine

In the steam turbine, the Chemical pipe plate may be used to support and fix some key components to ensure the normal operation of the steam turbine.

3. boiler

The Chemical pipe plate also plays an important role in the boiler, which supports the fixed tubes and makes the boiler run stably and efficiently.

4. Large central air conditioner

The Chemical pipe plate plays a role in supporting and fixing the refrigerant pipe in large central air conditioning, which is helpful to the circulation of refrigerant and heat exchange.

5. tubular exchanger

The Chemical pipe plate plays the role of supporting and fixing the tubes in the tube-and-tube heat exchanger, ensuring that the tubes can be arranged stably and exchange heat effectively.

Chemical pipe plate

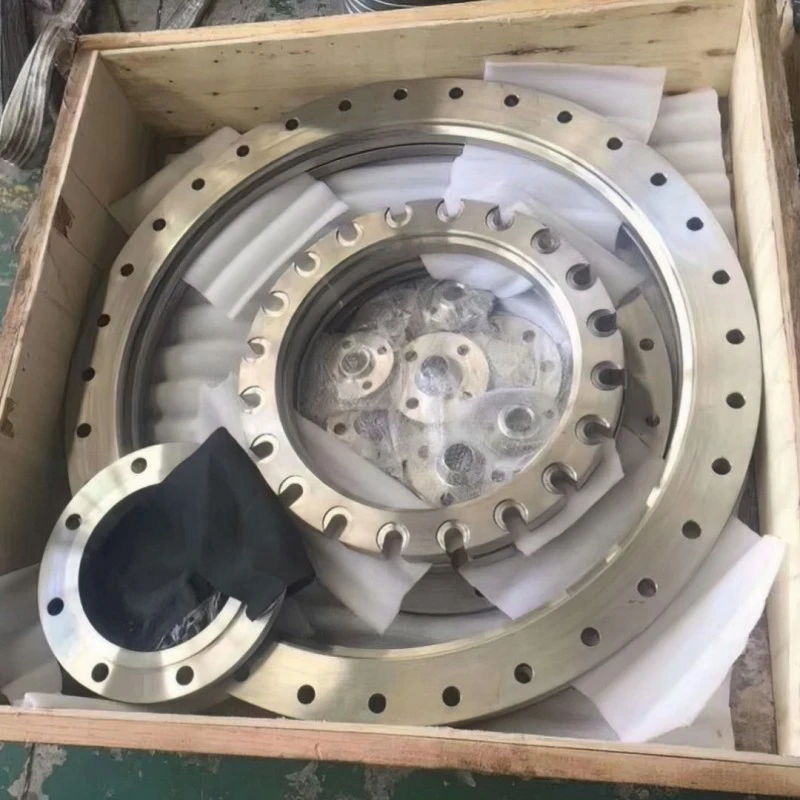

3、Chemical pipe plate field real shot

You can buy Chemical pipe plate according to your needs and show you Chemical pipe plate videos.。

Chemical pipe plate

As you can see from the live video.，Jianing forging widely used in pressure vessel, steam turbine, boiler, steam turbine, Large central air conditioner and other fields。

4、Chemical pipe plate performance advantage

The advantages of Chemical pipe plate are as follows:

1. Support and fixation

As a key structural part in the equipment, the Chemical pipe plate mainly plays the role of supporting and fixing the tubes (or pipes). It ensures that the pipe will not be loosened, displaced or deformed due to fluid impact, vibration or other external forces during the operation of the equipment.

2. High strength and rigidity

Chemical pipe plates are usually made of metal, which has strong rigidity and bearing capacity.

3. Excellent thermal conductivity

The metal material makes the Chemical pipe plate have good heat conduction performance, which is helpful for heat transfer in the heat exchanger.

4. Convenient maintenance

The structural design of Chemical pipe plates usually takes into account the convenience of maintenance. For example, some Chemical pipe plates are connected by flanges, which is convenient for disassembly and maintenance.

5. corrosion resistance

According to the different use environment, the Chemical pipe plate can be made of corrosion-resistant materials to cope with various harsh working conditions.

Chemical pipe plate

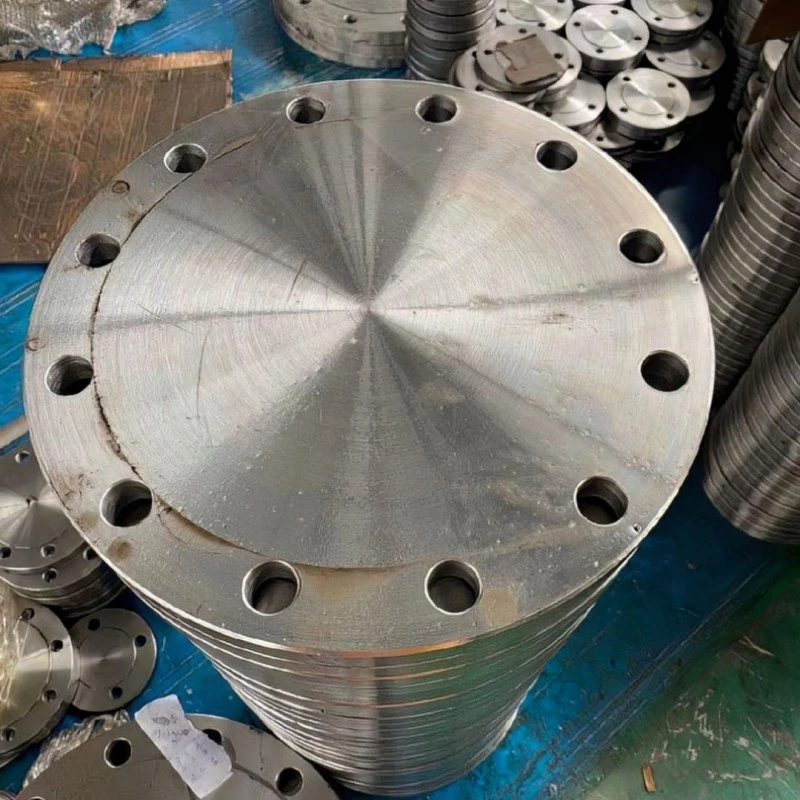

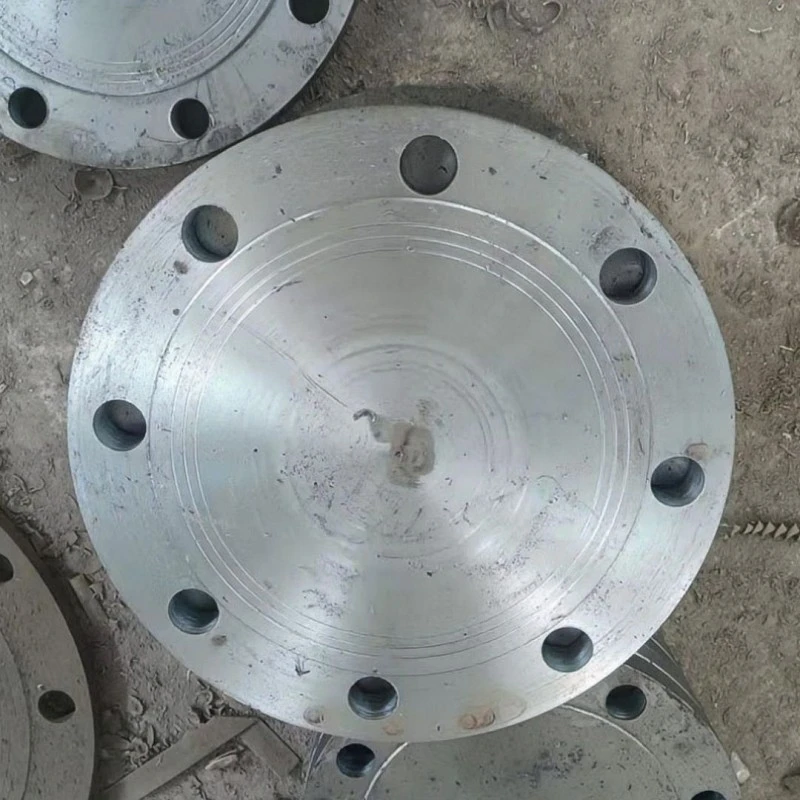

5、Physical picture of Chemical pipe plate

Exquisite design, advanced technology and complete sizes and models are available for customers to choose at will.。

Chemical pipe plate

Note: All the pictures in this article were taken by Jianing manufacturer.。

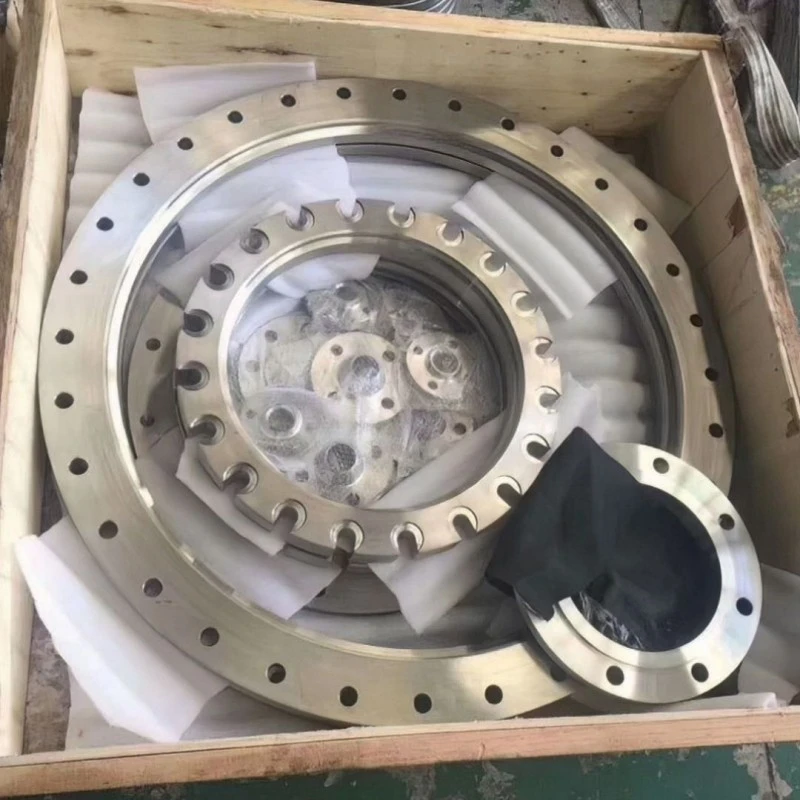

6、Chemical pipe plate video detail

Speak directly with facts on the spot。

Chemical pipe plate

As you can see from the live video.，Shanxi jianing forging co., ltd corrosion resistance,Good thermal conductivity,Strong rigidity,corrosion-resistant,High machining accuracy。

Chemical pipe plateThe machining accuracy has been significantly improved. High-precision machining ensures the close fit and efficient sealing between the Chemical pipe plate and the tube.、As one of the skeletons of heat exchangers and other equipment, it is responsible for supporting and fixing the tubes to ensure that they will not be loose or deformed due to fluid impact during work. This stability is very important for the long-term operation of equipment.、Structural design usually takes into account the convenience of maintenance. For example, some Chemical pipe plates are connected by flanges, which is convenient for disassembly and maintenance.、Depending on the use environment, the Chemical pipe plate can be made of different materials, such as stainless steel, titanium alloy and other corrosion-resistant materials. This enables the Chemical pipe plate to adapt to various harsh working conditions and prolongs the service life of the equipment.、The contact surface with the tubes is the main channel for heat transfer. Through the design and optimization of the Chemical pipe plate, the heat transfer efficiency of the heat exchanger can be improved and the energy consumption can be reduced. This is particularly important for industrial processes that require efficient heat exchange.，is a Chemical pipe plate。
